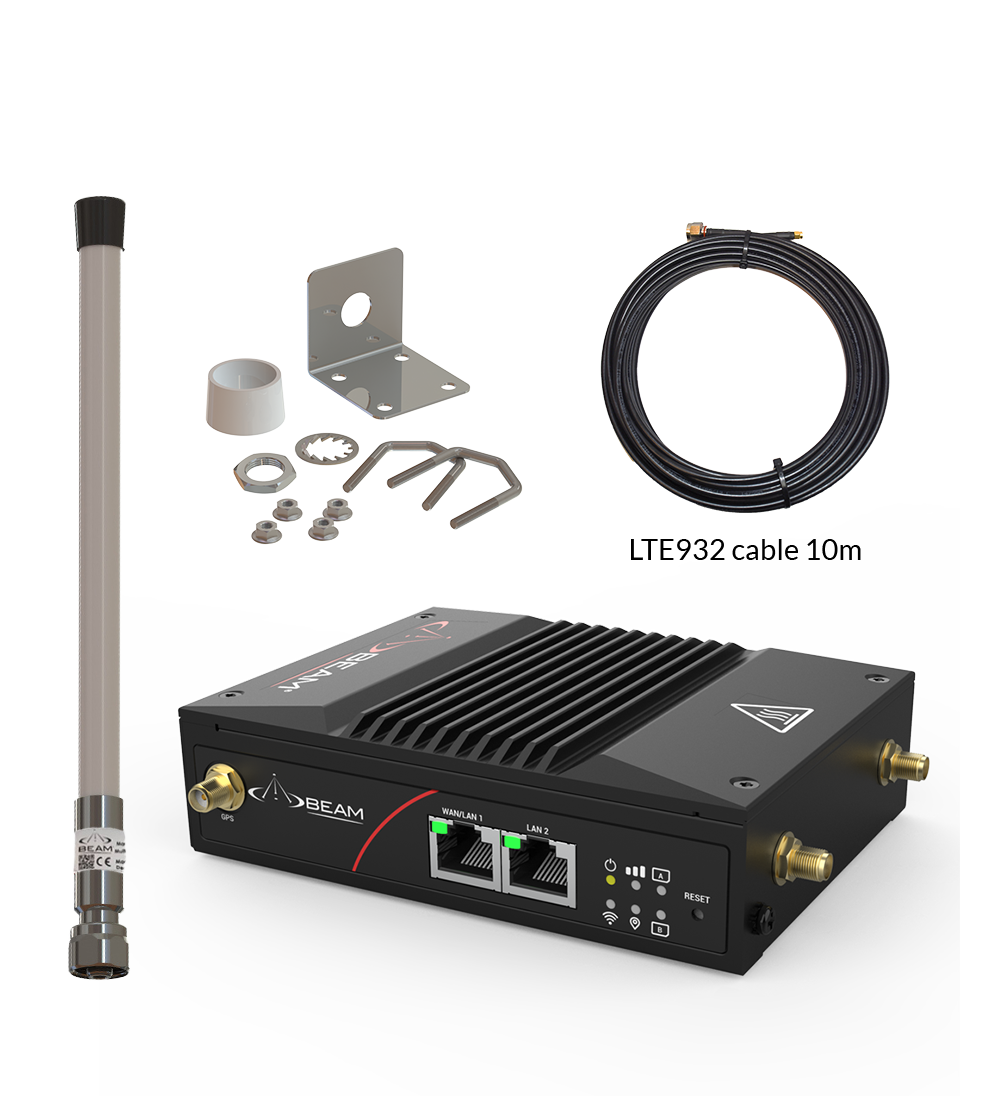

Beam LTE Marine Bundle 10m Cable (MG200-MB10)

The Beam LTE Marine Bundle includes the Beam MG200 LTE Gateway Kit with the Beam LTE710 Stick Antenna. The LTE710 Stick Antenna is splash-, rust-, and weather-proof, specifically designed to withstand the marine environment. This high gain omni-directional antenna is ideal to get the best possible coverage at sea (e.g. near coast vessels). The antenna can also be deployed for land applications and M2M/IoT installations.

MG200 Marine 10 (MG200-MB10):
- Beam MG200 LTE Gateway Kit
- Beam LTE710 Stick Antenna
- Beam LTE932 10m Cable
- LTE141 Mast/Rail Mount Bracket

Read more product features
  • Data
  • GPS
  • Tracking

Beam LTE Marine Bundle 10m Cable Features

Key Features

• Simple and affordable high-speed connectivity
• 4G LTE Category 13 (up to 391Mbps DL) with failover to 3G
• Dual SIM failover protection
• Integrated GPS (optional GPS antenna)
• Wi-Fi access point and hotspot functionality
• Industrial design for marine environments
• Onmi-directional high gain antenna for increased coverage
• Vibration and shock resistant

Beam LTE Marine Bundle 10m Cable Specifications

MG200 LTE GATEWAY PHYSICAL

Dimensions mm (L x W x H) inches (L x W x H)
Unit (w/o Bracket kit) 131 x 99 x 31 5.2 x 3.9 x 1.2
Unit (with Bracket kit) 167 x 99 x 39 6.6 x 3.9 x 1.5
Outer Box 278 x 247 x 69 10.94 x 9.72 x 2.60
Weight kgs lbs
Unit 0.625 1.377

MG200 LTE GATEWAY ENVIRONMENT

Temperature Degrees °C Degrees °F
Operating Range -30º to +70º -22º to +158º
Storage -40º to +85º -40ºto +185º
Humidity 10%~95% (non condensing)

MG200 LTE GATEWAY RF CHARACTERISTICS

LTE Module 1 x LTE-Cat.13, 2 x SIM, with GNSS
Ethernet 2 x RJ45 FE
Wi-Fi 802.11n 2T2R (2.4GHz)
Log Storage 1 x MicroSD card slot
Power Input 1 x DC 9V ~ 36V (Terminal Block)
Antenna Con. Power Input
Power Input 2 x SMA (F)-LTE, 2 x SMA(M)-Wi-Fi, 1 x SMA(F)-GPS

MG200 LTE GATEWAY WAN & UPLINK

WAN Cellular & Config. Ether-WAN; Failover, Load Balance,
Cellular 3GPP, 3G/LTE, IP Pass-through, IPv4/6
Ether-WAN Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Network Monitor ICMP/DNS Query

MG200 LTE GATEWAY Wi-Fi SPECIFICATIONS

Standard 2.4GHz MIMO 802.11n
Mode AP Router, WDS, WDS Hybrid Modes
Functions Multi-SSID, WMM
Security WEP, WPA,WPA2, WPA-PSK, WPA2- PSK, 802.1x
Captive Portal Wi-Fi hotspot

MG200 LTE GATEWAY CERTIFICATIONS

EMC EN 55032, ETSI EN 301 489-1, ETSI EN 301 489-17, EN 301489-52
Radio ETSI EN 300 328, AS/ACIF S042.1 & AS/CA S042.4
Safety AS/NZS 2772.2, IEC62368

LTE710 STICK ANTENNA PHYSICAL

Color White and Chrome
Material UV Protected PC, PTFE, PE and Chromed Solid Brass
Mounting Mast or Rail (mm) Ø 10 - 30
Dimensions mm (L x W x H) inches (L x W x H)
Unit 47 x 32 x 23 1.85 x 1.25 x 0.90
Packing Dimensions 510 x 350 x 60 20.07 x 13.77 x 2.36
Weight kgs lbs
Unit 0.3 0.6
Packing Weight 1 2.2

LTE710 STICK ANTENNA ENVIRONMENTAL

Temperature Degrees °C Degrees °F
Operating Range -55°C + 70°C -131°F + 251°F

LTE710 STICK ANTENNA SPECIFICATIONS

Frequency (MHz) 450 - 470 MHz, 698 - 960 MHz, 1427 - 1518 MHz, 1710 -2170 MHz, 2500 - 2690 MHz, 3300 - 3800 MHz
Gain (dBi) 3 dB (Marine), 0 dBd, 2.15 dBi (450- 470/698-960 MHz) 6 dB (Marine), 3 dBd, 5.15 dBi (1427-1518/1710-2170 MHz) 10 dB (Marine), 7 dBd, 9.15 dBi (2412- 2690/3300-3800 MHz)
Polarization Vertical
Antenna Type Cellular/LTE
V.S.W.R (dB) < 3.0:1 (450 - 470 / 790 - 960 MHz), < 2.5:1 (1427- 2690 MHz/ 3300 - 3800 MHz)
Impedance (ohm) 50
Max Input Power (W) 40
Radiation Pattern Omni-Directional

KIT CONTENTS

MG200 Marine 10 (MG200-MB10)
1 x Beam MG200 LTE Gateway
2 x Cellular Antennas
2 x Wi-Fi Antenna
1 x Terminal Block (2-pin for DC Power)
2 x Mounting Brackets
1 x Screw Bag
1 x Din Rail Bracket with Screws
1 x Spare Device Label
1 x AC power Adapter with AU Plug
1 x Fused Power Cable
4 x Rubber Feet
1 x MG200 LTE Gateway Quick Start Guide
1 x Beam LTE710 Stick Antenna
1 x Beam LTE932 10m Cable
1 x LTE141 Mast/Rail Mount bracket
1 x Beam LTE Marine Bundle Installation Guide

Brochures

Beam lte bundle series

For more information please download our Beam LTE Bundle series brochure.
Download brochure

Beam LTE Marine Bundle

For more information please download our Beam LTE Marine Bundles Brochure.
Download brochure
