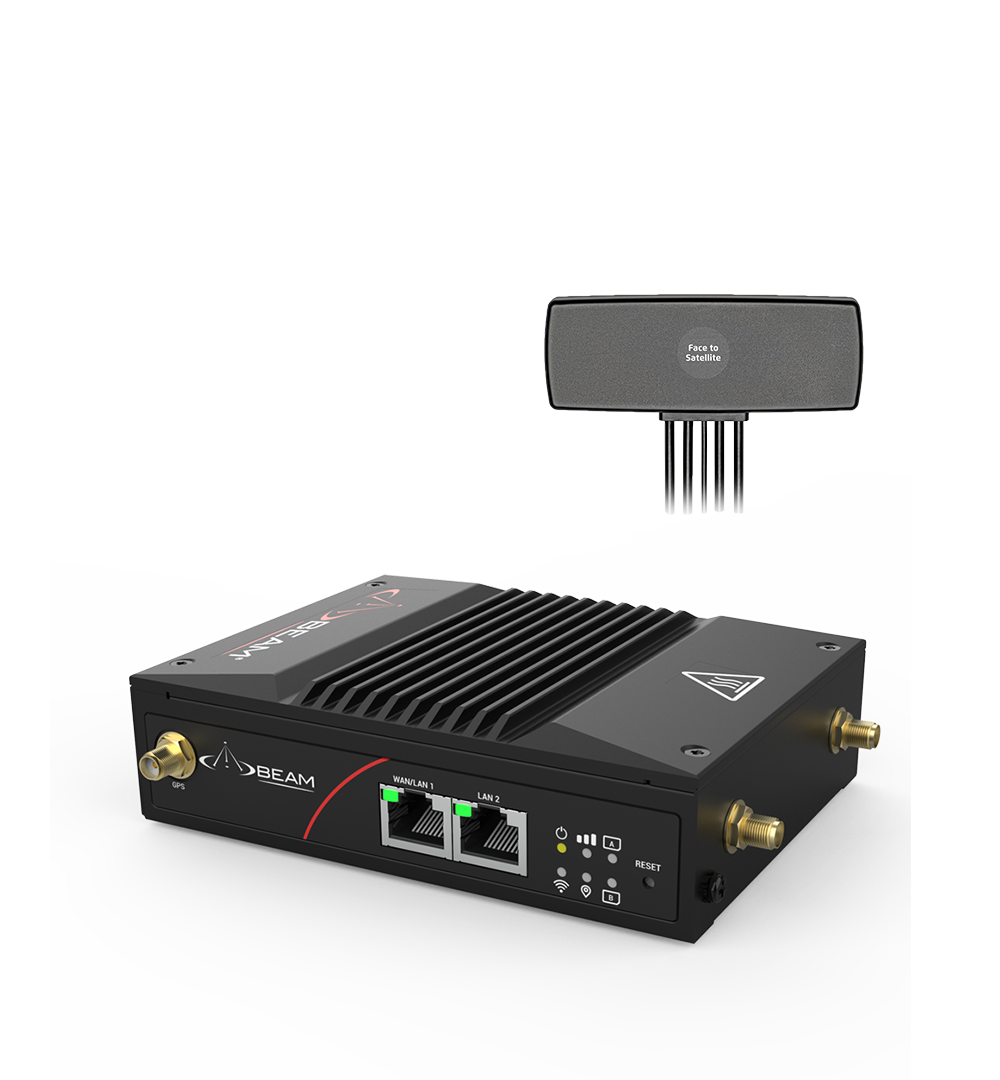

Beam LTE Vehicular RV Bundle (MG200-VAB)
The Beam LTE Vehicular RV Bundle with Beam LTE716 Patch Antenna for those who want a highly efficient connection that requires signal speed.
The LTE716 Antenna is equipped with an adhesive mount and delivers powerful multiple-input, multiple-output (MIMO) antenna technology for LTE 4G fast connection and a custom tuned GPS patch antenna for GNSS location services.
This bundle is the perfect solution for vehicles who often drive out to fringe and regional locations and wants to achieve a better signal strength.
- Data
- GPS
- Tracking
Beam LTE Vehicular RV Bundle Features
Key Features
• Simple and affordable high-speed connectivity
• 4G LTE Category 13 (up to 391Mbps DL) with failover to 3G
• Dual SIM failover protection
• Location tracking with GPS
• Wi-Fi access point and hotspot functionality
• Industrial design for vehicle environments
• Antenna efficient element design combining LTE, Wi-Fi and GPS.
• Vibration and shock resistant
• 4G LTE Category 13 (up to 391Mbps DL) with failover to 3G
• Dual SIM failover protection
• Location tracking with GPS
• Wi-Fi access point and hotspot functionality
• Industrial design for vehicle environments
• Antenna efficient element design combining LTE, Wi-Fi and GPS.
• Vibration and shock resistant
Beam LTE Vehicular RV Bundle Specifications
MG200 LTE GATEWAY PHYSICAL
| Dimensions | mm (L x W x H) | inches (L x W x H) |
| Unit (w/o Bracket kit) | 131 x 99 x 31 | 5.2 x 3.9 x 1.2 |
| Unit (with Bracket kit) | 167 x 99 x 39 | 6.6 x 3.9 x 1.5 |
| Outer Box | 278x 247x 69 | 10.94 x 9.72 x 2.60 |
| Weight | kgs | lbs |
| Unit | 0.625 | 1.377 |
MG200 LTE GATEWAY ENVIRONMENT
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -30º to +70º | -22º to +158º |
| Storage | -40º to +85º | -40ºto +185º |
| Humidity | 10%~95% (non condensing) |
MG200 LTE GATEWAY RF CHARACTERISTICS
| LTE Module | 1 x LTE-Cat.13, 2 x SIM, with GNSS |
| Ethernet | 2 x RJ45 FE |
| Wi-Fi | 802.11n 2T2R (2.4GHz) |
| Log Storage | 1 x MicroSD card slot |
| Power Input | 1 x DC 9V ~ 36V (Terminal Block) |
| Antenna Con. | Power Input |
| Power Input | 2 x SMA (F)-LTE, 2 x SMA(M)-Wi-Fi, 1 x SMA(F)-GPS |
MG200 LTE GATEWAY WAN & UPLINK
| WAN | Cellular & Config. Ether-WAN; Failover, Load Balance, |
| Cellular | 3GPP, 3G/LTE, IP Pass-through, IPv4/6 |
| Ether-WAN | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Network Monitor | ICMP/DNS Query |
MG200 LTE GATEWAY Wi-Fi SPECIFICATIONS
| Standard | 2.4GHz MIMO 802.11n |
| Mode | AP Router, WDS, WDS Hybrid Modes |
| Functions | Multi-SSID, WMM |
| Security | WEP, WPA,WPA2, WPA-PSK, WPA2- PSK, 802.1x |
| Captive Portal | Wi-Fi hotspot |
MG200 LTE GATEWAY CERTIFICATIONS
| EMC | EN 55032, ETSI EN 301 489-1, ETSI EN 301 489-17, EN 301489-52 |
| Radio | ETSI EN 300 328, AS/ACIF S042.1 & AS/CA S042.4 |
| Safety | AS/NZS 2772.2, IEC62368 |
LTE716 PATCH ANTENNA PHYSICAL
| Color | Black | |
| Cable Length (m) | 5 | |
| Dimensions | mm (L x W x H) | inches (L x W x H) |
| Unit | 47 x 32 x 23 | 1.85 x 1.25 x 0.90 |
| Packing Dimensions | 230 x 170 x 90 | 9.05 x 6.69 x 3.54 |
| Weight | kgs | lbs |
| Unit | 0.25 | 0.55 |
| Packing Weight | 1 | 2.20 |
LTE716 PATCH ANTENNA ENVIRONMENTAL
| Temperature | Degrees °C | Degrees °F |
| Operating Temperature | -40°C + 85°C | -40°F to +185°F |
LTE716 PATCH ANTENNA SPECIFICATIONS
| LTE | Wi-Fi | |
| Frequency (MHz) | 698-960/1710-2170/2500-2700 | 2410-2490/4920-5925 |
| Gain (V) | 2.0/2.7/2.0 | 3.0/3.5 |
| Polarization | Linear | Linear |
| V.S.W.R (dB) | ~1.8:1/~1.3:1/~2.0:1 | <=1.4:1 dB |
| Impedance (ohm) | 50 | 50 |
| Max Input Power (W) | 25 | 25 |
| Radiation Pattern | Omni-Directional | Omni-Directional |
| GPS | ||
| Frequency (MHz) | 1575.42 | |
| Gain (V) | 28 @ 2.7 V | |
| Polarization | RHCP | |
| V.S.W.R (dB) | <=1.4:1 dB | |
| Impedance (ohm) | 50 | |
| Max Input Power (W) | NA | |
| Radiation Pattern | Hemispherical |
KIT CONTENTS
| LTE VEHICULAR RV BUNDLE |
| 1 x Beam MG200 LTE Gateway |
| 2 x Cellular Antennas |
| 2 x Wi-Fi Antenna |
| 1 x Terminal Block ( 2-pin for DC Power ) |
| 2 x Mounting Brackets |
| 1 x Screw Bag |
| 1 x Din Rail Bracket with Screws |
| 1 x Spare Device Label |
| 1 x AC Power Adapter with AU Plug |
| 1 x Fused Power Cable |
| 4 x Rubber Feet |
| 1 x MG200 LTE Gateway Quick Start Guide |
| 1 x Beam LTE716 Patch Antenna |
| 1 x Beam LTE Vehicular RV Bundle Installation Guide |
Brochures
Beam lte bundle series
For more information please download our Beam LTE Bundle series brochure.
Download brochure
Beam LTE Vehicular RV Bundle
For more information please download our Beam LTE Vehicular RV Bundle Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
