Beam LTE Fixed Installation Bundle 10m Cable (MG200-FB10)
The Beam LTE Fixed Installation Bundle pairs the Beam MG200 with the wideband multiple-input, multiple-output (MIMO) Beam LTE720 Panel Antenna to provide the perfect solution for high speed 4G MIMO and carrier aggregation data connection.

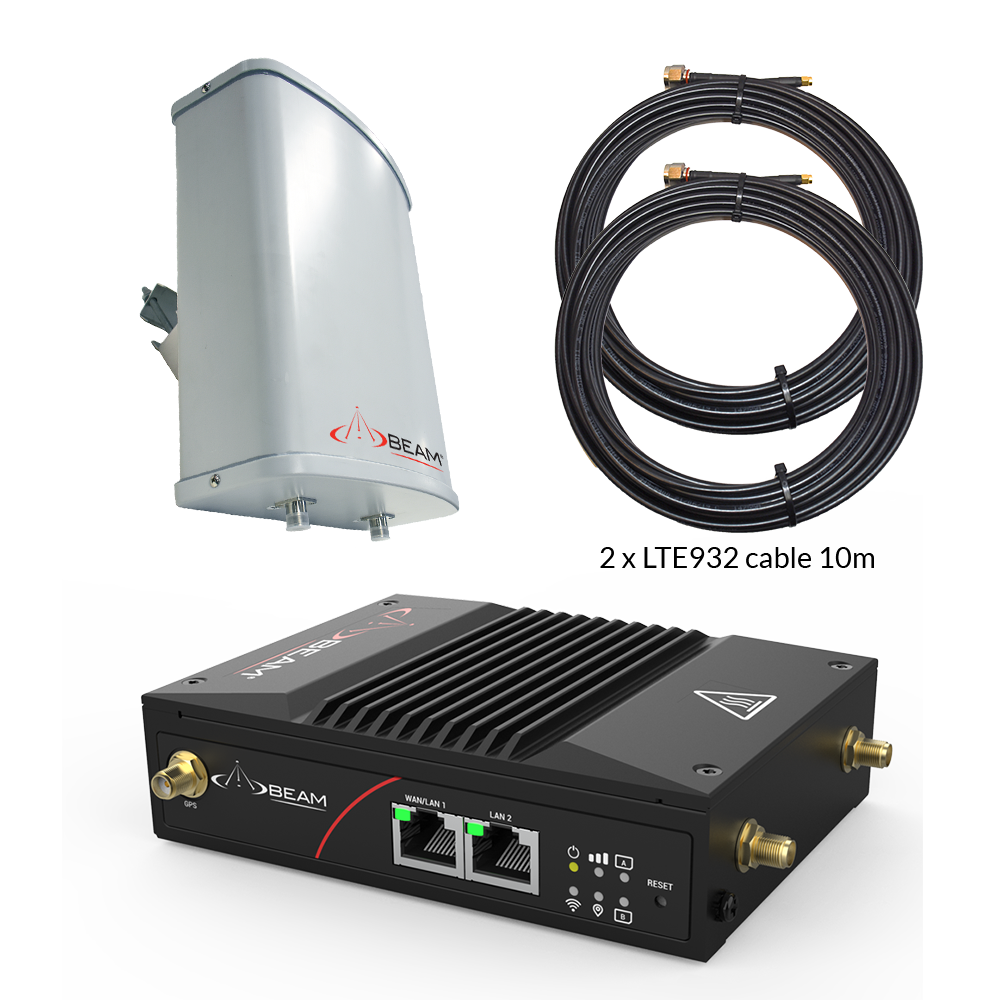

MG200 Fixed Installation 10 (MG200-FB10)
- Beam MG200 LTE Gateway Kit
- Beam LTE720 Panel Antenna
- 2 x Beam LTE932 10m Cable
Beam LTE Fixed Installation Bundle 10m Cable Features
Key Features
• Simple and affordable high-speed connectivity
• 4G LTE Category 13 (up to 391Mbps DL) with failover to 3G
• Dual SIM failover protection
• Wi-Fi access point and hotspot functionality
• Industrial design for harsh environments
• High gain panel antennas for increased coverage
• Vibration and shock resistant
• 4G LTE Category 13 (up to 391Mbps DL) with failover to 3G
• Dual SIM failover protection
• Wi-Fi access point and hotspot functionality
• Industrial design for harsh environments
• High gain panel antennas for increased coverage
• Vibration and shock resistant
Beam LTE Fixed Installation Bundle 10m Cable Specifications
MG200 LTE GATEWAY PHYSICAL
| Dimensions | mm (L x W x H) | inches (L x W x H) |
| Unit (w/o Bracket kit) | 131 x 99 x 31 | 5.2 x 3.9 x 1.2 |
| Unit (with Bracket kit) | 167 x 99 x 39 | 6.6 x 3.9 x 1.5 |
| Outer Box | 278 x 247 x 69 | 10.94 x 9.72 x 2.60 |
| Weight | kgs | lbs |
| Unit | 0.625 | 1.377 |
MG200 LTE GATEWAY ENVIRONMENT
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -30 to +70 | -22 to +158 |
| Storage | -40 to +85 | -40 to +185 |
| Humidity | 10%~95% (non condensing) |
MG200 LTE GATEWAY RF CHARACTERISTICS
| LTE Module | 1 x LTE-Cat.13, 2 x SIM, with GNSS |
| Ethernet | 2 x RJ45 FE |
| Wi-Fi | 802.11n 2T2R (2.4GHz) |
| Log Storage | 1 x MicroSD card slot |
| Power Input | 1 x DC 9V ~ 36V (Terminal Block) |
| Antenna Con. | Power Input |
| Power Input | 2 x SMA (F)-LTE, 2 x SMA(M)-Wi-Fi, 1 x SMA(F)-GPS |
MG200 LTE GATEWAY WAN & UPLINK
| WAN | Cellular & Config. Ether-WAN; Failover, Load Balance, |
| Cellular | 3GPP, 3G/LTE, IP Pass-through, IPv4/6 |
| Ether-WAN | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Network Monitor | ICMP/DNS Query |
MG200 LTE GATEWAY Wi-Fi SPECIFICATIONS
| Standard | 2.4GHz MIMO 802.11n |
| Mode | AP Router, WDS, WDS Hybrid Modes |
| Functions | Multi-SSID, WMM |
| Security | WEP, WPA,WPA2, WPA-PSK, WPA2- PSK, 802.1x |
| Captive Portal | Wi-Fi hotspot |
MG200 LTE GATEWAY CERTIFICATIONS
| EMC | EN 55032, ETSI EN 301 489-1, ETSI EN 301 489-17, EN 301489-52 |
| Radio | ETSI EN 300 328, AS/ACIF S042.1 & AS/CA S042.4 |
| Safety | AS/NZS 2772.2, IEC62368 |
LTE720 PANEL ANTENNA PHYSICAL
| Color | Gray | |
| Material | UPVC | |
| Mounting Pole | Ø 35-65 | |
| Dimensions | mm (L x W x H) | inches (L x W x H) |
| Unit | 355 x 285 x 130 | 13.97 x 11.22 x 5.11 |
| Packing Dimensions | 535 x 345 x 220 | 21.06 x 13.58 x 8.66 |
| Weight | kgs | lbs |
| Unit | 3.5 | 7.7 |
| Packing Weight | 4.5 | 8.8 |
LTE720 PANEL ANTENNA ENVIRONMENTAL
| Dimensions | Degrees °C | Degrees °F |
| Operating Temperature | -20°C + 50°C | -4°F + 122°F |
LTE720 PANEL ANTENNA SPECIFICATIONS
| Frequency (MHz) | 698-960MHz /1710-2700MHz |
| Gain (dBi) | 8/9 |
| Polarization | ±45° (XPOL) |
| Antenna Type | LTE/ Cellular |
| V.S.W.R (dB) | ≤1.5:1 |
| Impedance (ohm) | 50 |
| Max Input Power (W) | 100 |
| Radiation Pattern | Directional |
KIT CONTENTS
| MG200 Fixed Installation 10 (MG200-FB10) |
| 1 x Beam MG200 LTE Gateway |
| 2 x Cellular Antennas |
| 2 x Wi-Fi Antenna |
| 1 x Terminal Block ( 2-pin for DC Power ) |
| 2 x Mounting Brackets |
| 1 x Screw Bag |
| 1 x Din Rail Bracket with Screws |
| 1 x Spare Device Label |
| 1 x AC Power Adapter with AU Plug |
| 1 x Fused Power Cable |
| 4 x Rubber Feet |
| 1 x MG200 LTE Gateway Quick Start Guide |
| 1 x Beam LTE720 Panel Antenna |
| 2 x Beam LTE932 10m Cable |
| 1 x Fixed Installation Guide |
Brochures
Beam lte bundle series
For more information please download our Beam LTE Bundle series brochure.
Download brochure
Beam LTE Fixed Installation Bundle
For more information please download our Beam LTE Fixed Installation Bundle Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
