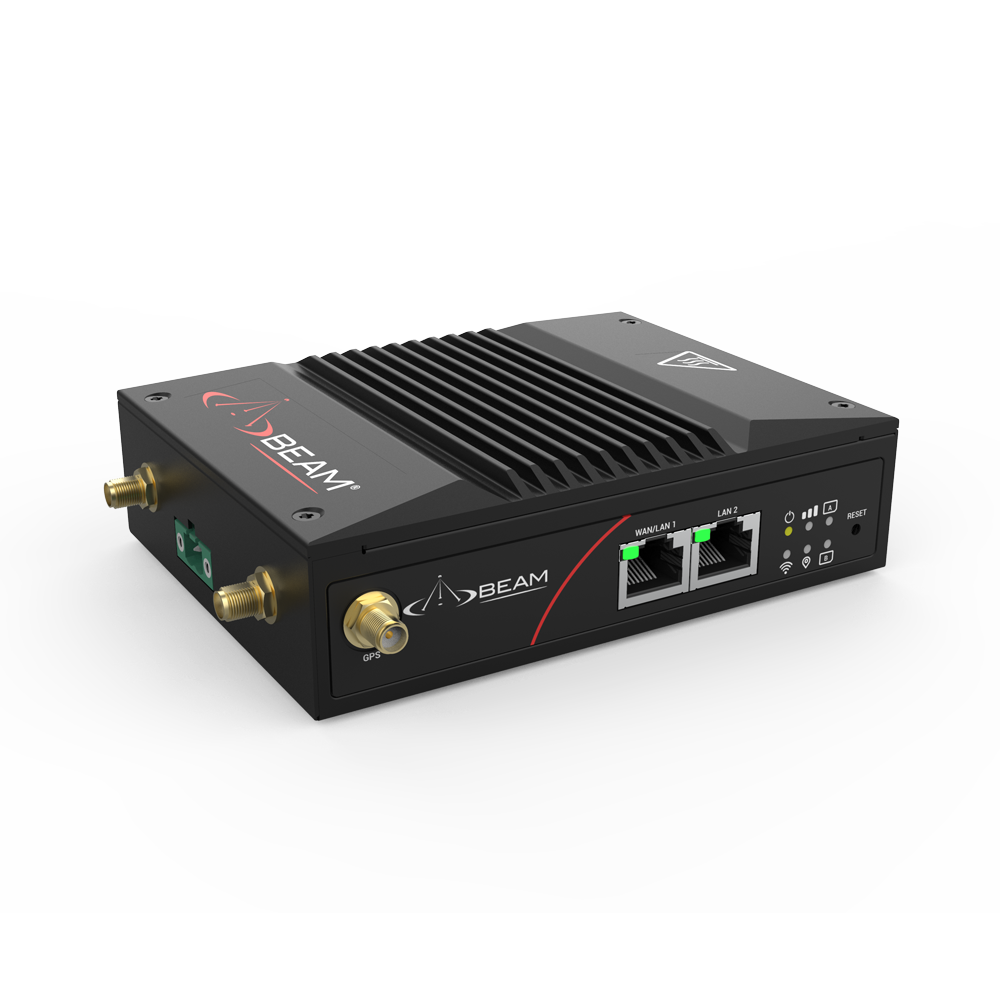

MG200 LTE Gateway (MG200)

The Beam MG200 LTE Gateway (Cat 13), is an affordable modem that provides high-speed connectivity for remote installation, reliable back-up and simple set-up.
Beam’s Wi-Fi router is a robust and intelligent device that creates reliable connection for a variety of applications ideal for in-vehicle, maritime, farming, surveillance and in-building.
It’s rugged enclosure is industrial grade and is designed to operate in conditions such as shock, vibration, extreme temperatures and harsh environments.

Read more product features

MG200 LTE Gateway Features

Key Features

• Simple and affordable high-speed connectivity
• 4G LTE Category 13 (up to 391Mbps DL) with failover to 3G
• Dual SIM
• Integrated GPS (optional GPS antenna)
• Wifi access point and hotspot functionality
• Industrial design for harsh environments, fixed and mobile both in land and maritime
• Tough environmental specs
• Optional high gain antennas for increased coverage

MG200 LTE Gateway Specifications

Device Interface

LTE Module 1*LTE-Cat.13, 2*SIM, with GNSS

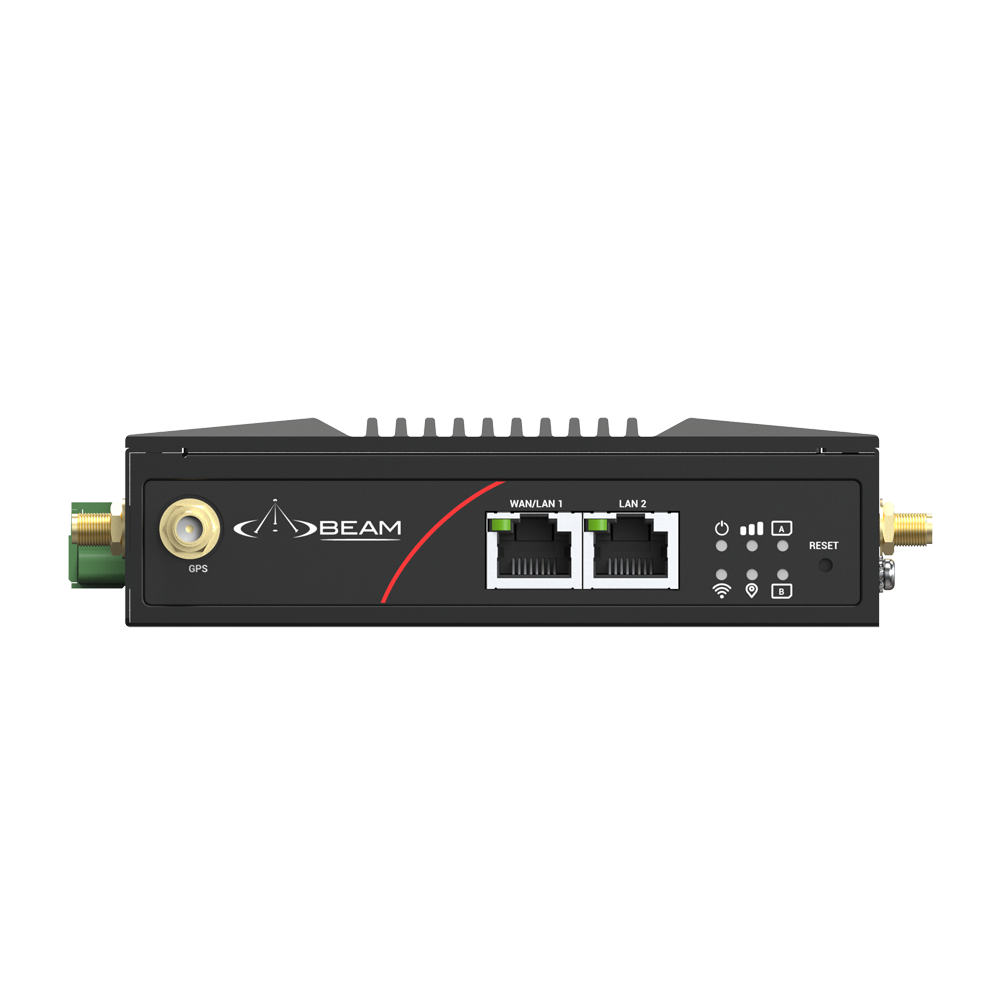

Ethernet 2*RJ45 FE
WiFi 802.11n 2T2R (2.4GHz)
Log Storage 1*MicroSD card slot
Power Input 1* DC 9V ~ 36V (Terminal Block)

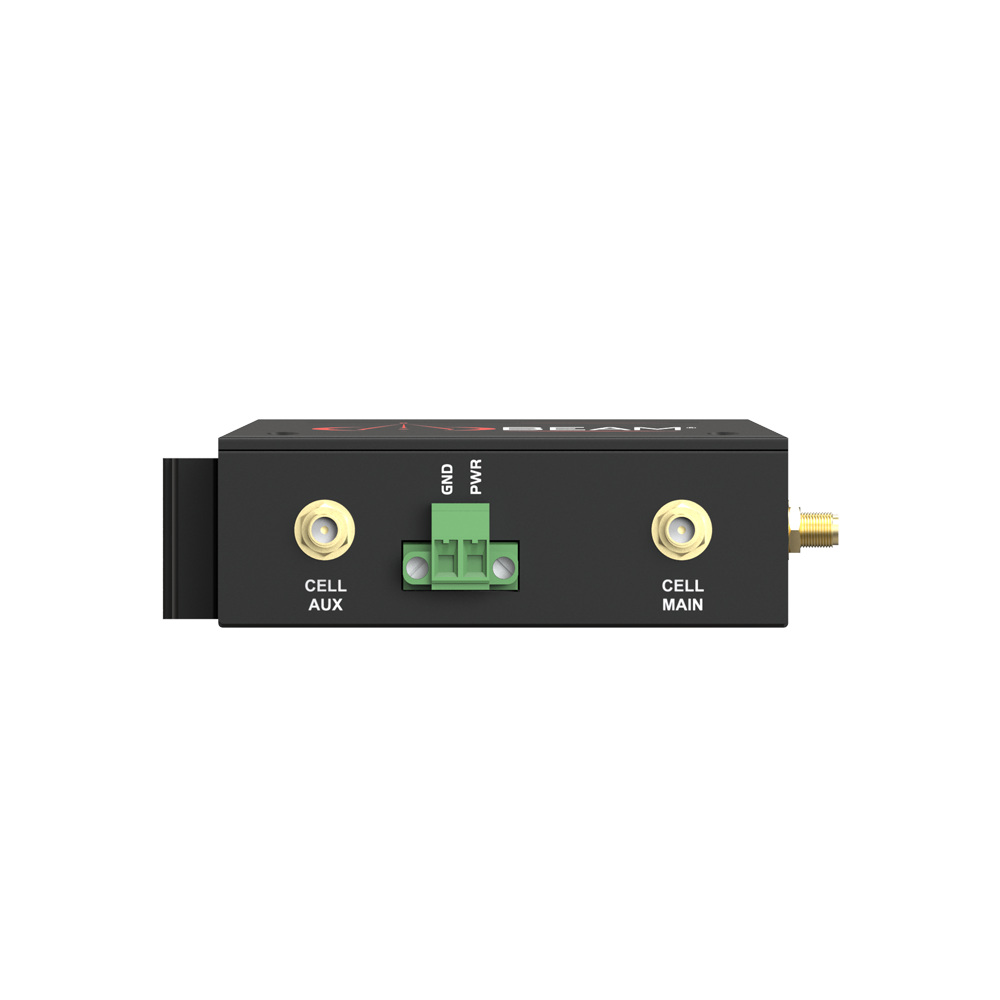

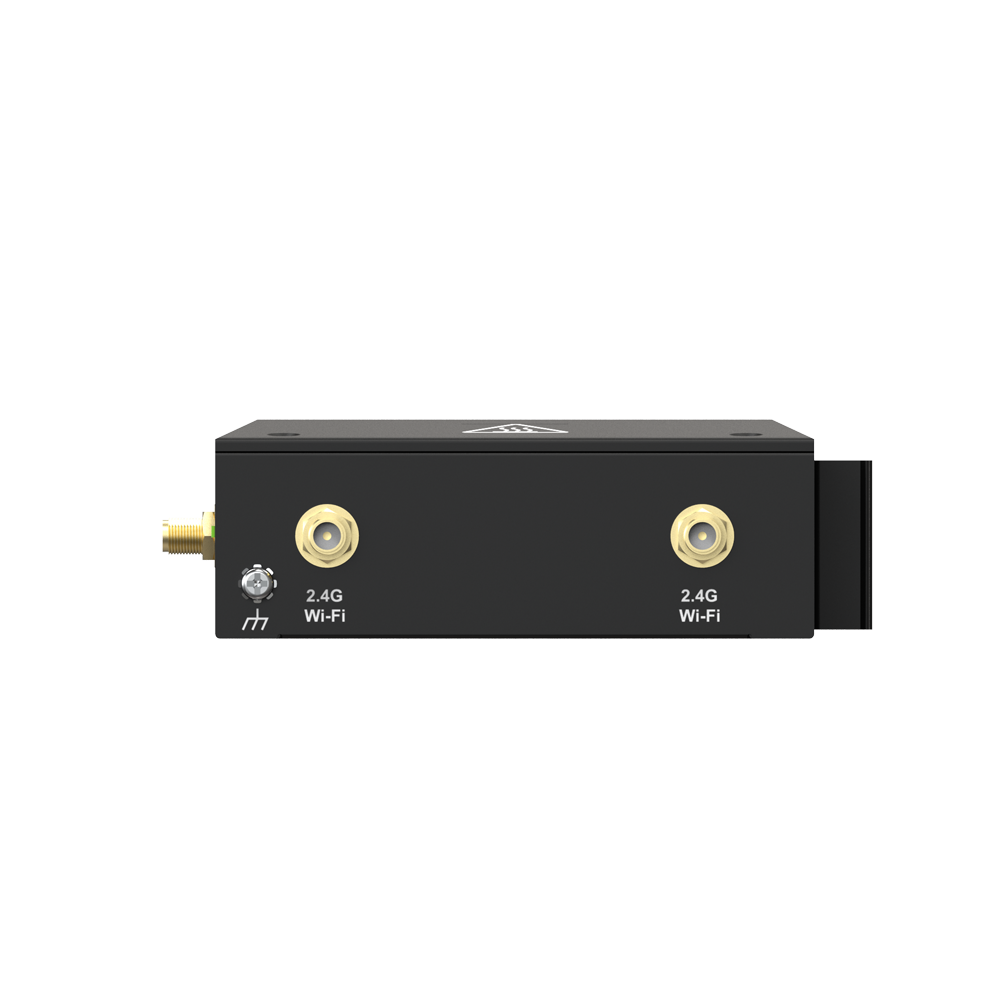

Antenna Con. 2*SMA (F)-LTE, 2*SMA(M)-WiFi, 1* SMA(F)-GPS

WAN & Uplink

WAN Cellular & Config. Ether-WAN; Failover, Load Balance,
Cellular 3GPP, 3G/LTE, IP Pass-through, IPv4/6
Ether-WAN Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Network Monitor ICMP/DNS Query

Wi-Fi

Standard 802.11 Industry Compliance
Mode AP Router, WDS, WDS Hybrid Modes
Functions Multi-SSID, WMM
Security WEP, WPA,WPA2, WPA-PSK, WPA2-PSK, 802.1x
Captive Portal External web portal

ENVIRONMENT

Temperature Degrees °C Degrees °F
Operating Range -30 to +70 -22 to +158
Storage -40 to +85 -40 to +185
Humidity 10%~95% (non condensing)

PHYSICAL

Dimensions mm inches
Unit (w/o Bracket kit) 131 x 99 x 31 5.2 x 3.9 x 1.2
Unit (with Bracket kit) 167 x 99 x 39 6.6 x 3.9 x 1.5
Outer Box 278x 247x 69 10.94x 9.72x 2.6
kg lbs
Weight 0.625 1.377

CERTIFICATIONS

EMC EN 55032, ETSI EN 301 489-1, ETSI EN 301 489-17, EN 301489-52
Radio ETSI EN 300 328, ETSI EN 301 893, AS/ACIF S042.1& AS/CA S042.4
Safety AS/NZS 2772.2, IEC62368

KIT CONTENTS

1 x MG200 Gateway LTE
2 x Cellular Antennas
2 x WiFi Antenna
1 x Terminal Block ( 2-pin for DC Power )
2 x Mounting Brackets
1 x Screw Bag
1 x Din Rail bracket with screws
1 x spare device label
1 x AC power adapter AU plug
1 x fused power cable
4 x rubber feet
Quick Start Guide

Brochures

Brochure MG Series

For more information please download our MG Series Brochure.
Download brochure

Brochure MG200 LTE Gateway

For more information please download our MG200 LTE Gateway Brochure.
Download brochure

Visit our support page to download manuals, qsg, firmware upgrades for this product

Product support
